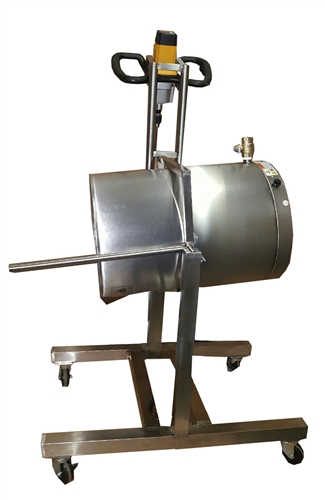

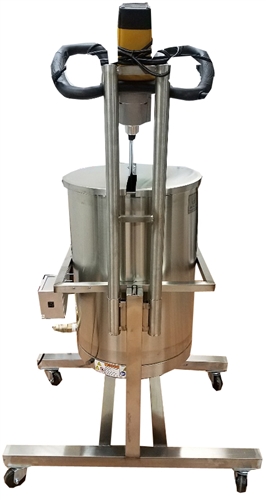

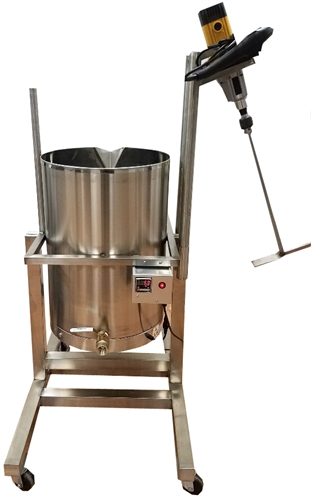

• Complete HEATED Digitally Controlled Stainless Steel Pot Tipper With Mixer Holds 26 Gallons (98Liters) & Features Smart Pouring Spouts To Melt & Mix Your Soap Ingredients & Pour Directly Into Your Soap Containers

Setting The Temperature On Your Unit

• 100% US Steel Free From Mercury, Lead and Radiation
  • POT: Approximate Capacity: 26 Gallons (98Liters)
    • Pot Dimensions:
      • Inner Dimensions= 18" (46cm) Diameter X 24" (61cm) Deep Single Walled Tank
      • Outer Dimensions= 18" (46cm) Diameter x 26"(66m) H
    • Round Inner Surface For Easy Cleaning is High-Grade, US 304 Stainless Steel with #4 Finish so it is easy to clean, rust proof and will provide years of service.
    • Stainless Steel lid with knob/handle & Sealing gasket.
    • 1" (2.54cm) Stainless Steel Valve/Spout
    • 1" (2.54cm) Ball Valve
  • Stainless Steel Stand: 24" (61cm) Length x 36" (91cm) Width x 52" (132cm) High
  • Stainless Steel lid with knob/handle.
  • 1" (2.54cm) Stainless Steel Valve/Spout
  • 1" (2.54cm) Brass Ball Valve

• Digital Controls
  • Framed Aluminum Panel Is High-impact.

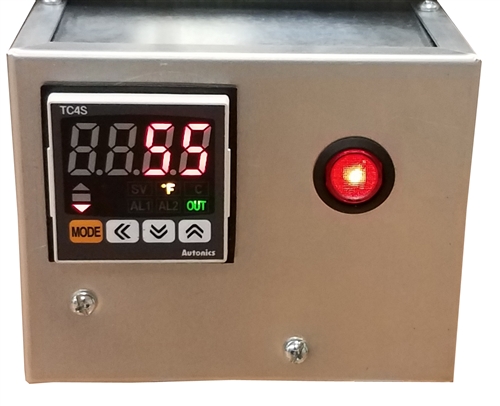

  • Digital Temperature Controller: Easy to read and use 4-digit 7-Segment LED to provide accurate, precise heating from -0° to 212° F/ 100 ° C, with On/Off status, easy fingertip-touch pad which has lockable feature and allows easy set up and adjustment of control set-point, differential, and other functions.
  • Illuminated Power buttons.
  • Reset breaker/fuses.

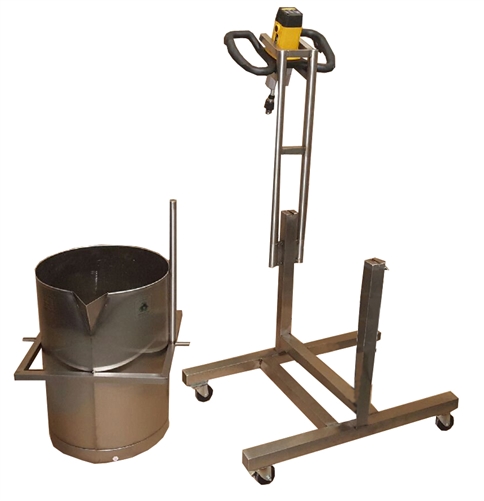

• Agitator/Mixer
  • Industrial Housing & Stainless Steel mixing Blade
  • Variable Speed Controlled 180-700 RPM Motor
• Electrical Specifications:
  • Pot Tipper

    • 800W
    • 7amps at 120v; 5amps at 240v
    • 120v or 240v
  • Mixer
    • 1600W
    • 15amps at 120v; 8amps at 240v
    • 120v or 240v

Volume: 26 Gallons, 98 Liters Dimensions: W 18" (46cm) X H 24" (61cm) Single Walled Kettle Tank Digital temperature controller is easy to read and use and features a Liquid Crystal Display (LCD) to provide accurate, precise heating from -0° to 212° F/ 100 ° C, light-emitting diode (LED) to indicate On/Off status, easy fingertip-touchpad which has lockable feature and allows easy set up and adjustment of control setpoint, differential, and other functions, and is enclosed in high-impact resistant, thermoplastic NEMA 1X resistant surface-mount enclosure. Also features single-stage, electronic temperature control with a Single-Pole, Double-Throw (SPDT) output relay and lockable front-panel touchpad for setup and adjustment, wide temperature differential adjustment range (1 to 30° F) to allow the user to set a precise (1° F) temperature differential from 1 to 30F°, adjustable anti-short cycle delay (0 to 12 Minutes in 1-Minute Increments) ensures that the output relay remains off for a user-set time delay, which helps avoid hard starts, nuisance overload outages, and unnecessary equipment wear. Materials Never touch Heating Element 800W 7amps 120v Agitator- Variable Speed Controlled 180-700 RPM Motor & Rotation Dial Shaft: 1/2' dia x 24-30" L -customized for your melter at no additional charge! Propellor: (1) 5.5" dia, 1-2 Additional Blades depending on size.
